作為鑄造廠老板，你是不是經常遇到這樣的情況？

——客戶要做小批量試制件，做個金屬模具要20萬，結果訂單才50件，一算賬發現模具費比賺的錢還多，只能放棄訂單！
——客戶來了個帶蜂窩結構的航空件訂單，傳統砂芯拼裝誤差比零件尺寸還大，盯著報廢的鑄件非常頭痛！
——競爭對手用3D打印接了個某知名汽車電池包訂單，自家報價比人家低30%還是沒中標，最后打聽到人家的交貨比我們快2個月，很無奈！

——客戶動不動改設計，倉庫里堆了300多套報廢模具，查賬發現模具庫存占用了半年利潤，這滋味太痛苦了！

——客戶發了個結構復雜的件過來，并且說價格不是問題，一評估發現傳統鑄造工藝做不出來，看著這么高附加值的訂單也只能放棄！

下邊我們幫各位老板一一梳理清楚，一篇文章讓你全面了解3D打印砂型鑄造技術！

什么是砂型3D打印？

砂型3D打印是一種比較新的技術，簡單來說，就是像搭積木一樣，用特殊的材料一層一層地 “堆” 出鑄造用的砂型。

以前傳統的做砂型方法，可能需要先做模具，再用模具去造型，過程比較復雜，而且如果要做一些形狀很奇怪、很復雜的砂型，就會特別困難，成本也高。但砂型 3D 打印就不一樣了，它是通過電腦里的三維模型來工作的。你把設計好的鑄件三維模型數據輸入到 3D 打印機里，打印機就會根據模型的形狀和結構，把特殊的沙子或者類似沙子的材料，按照一層一層的方式精準地鋪放和粘結起來，就像用無數個很薄的 “沙片” 逐漸搭建成一個完整的砂型。這樣，不管是多么復雜的形狀，只要能在電腦里設計出來，它都能打印出來，而且速度還挺快，也不需要像傳統方法那樣制作復雜的模具，能節省很多時間和成本呢。

砂型3D打印機原理

砂型3D打印通常采用粘結劑噴射技術（Binder Jetting, BJ），其基本原理如下：

1. 鋪砂：打印機在打印平臺上均勻鋪設一層特定的鑄造用砂（如硅砂、陶瓷砂或覆膜砂）。
2. 噴射粘結劑：噴頭按照計算機模型（CAD數據）精確噴射粘結劑，使特定區域的砂粒粘結在一起。
3. 重復堆積：平臺下降，再次鋪砂并噴射粘結劑，逐層固化成型，直至整個砂型打印完成。
4. 后處理：去除未粘結的松散砂料，對打印出的砂型進行硬化、清理，隨后即可用于金屬澆鑄。

3D打印砂型鑄造解決哪些核心問題？

每一項技術的存在或誕生必定是有它的“使命”。通俗來說就是解決了特定問題，滿足了市場需求，這就是它存在的價值。下邊我們來看看砂型3D打印技術解決了哪些傳統鑄造遇到的棘手問題，如下：

• 復雜形狀零件制造：傳統砂型鑄造制造復雜形狀模具難度大、成本高，像航空發動機葉片內部精細冷卻通道，傳統工藝難以精準成型。3D 打印砂型依據數字模型，能輕松將復雜形狀變?yōu)楝F(xiàn)實，從帶有密集內凹、凸起的汽車發動機缸體砂型，到有著精妙仿生結構的醫療器械外殼砂型，都能完美呈現。
• long production lead time：傳統砂型鑄造需經歷設計模具、制造模具、調試模具等冗長流程，大型模具制造周期常超數月。3D 打印砂型無需模具制作，直接按數字模型打印，設計修改也只需在電腦上操作模型，重新打印即可，能大幅縮短生產周期。如研發新款汽車發動機缸體時，傳統鑄造模具報廢重制至少兩周，3D 打印砂型當天就能完成新模型打印，次日即可投入鑄造。
• Difficulty in cost control：傳統鑄造模具制造材料浪費嚴重，復雜模具材料利用率不足 30%，且人工成本高。3D 打印砂型按需打印，精準用砂，材料利用率超 90%，減少浪費。打印過程自動化程度高，可降低人力成本。以小型鑄造廠為例，年產能 5000 件小型管件鑄件，引入 3D 打印砂型后，材料成本年降 15 萬元，人工成本削減 20 萬元。
• 鑄件精度低：傳統砂型因模具磨損、分型面貼合誤差等，鑄件尺寸偏差常超 ±1mm，后續機加工余量多、材料浪費大，且易出現局部疏松、夾砂等缺陷，導致鑄件力學性能不均。3D 打印砂型由數字化模型精準驅動，砂型尺寸精度可達 ±0.5mm 以內，能實現均勻緊實，避免砂粒松散不均，同時優化凝固過程，大幅減少縮孔、縮松，保障鑄件內部質量穩定可靠。
• 環保壓力大：傳統鑄造的模具制造產生大量廢金屬、廢塑料，砂型處理后廢砂堆積如山。3D 打印砂型生產中，未使用的砂可回收再利用，廢棄物極少，且打印過程無需大量化學粘結劑，減少有害氣體揮發，改善車間環境。據統計，采用 3D 打印砂型后，鑄造車間廢棄物排放降低超 80%，粉塵、有害氣體濃度達環保標準。

鑄造廠如何評估是不是需要買砂型3d打印機？

一臺砂型3D打印機的價格不便宜（通常來說尺寸越大越貴），要購買的話相對是比較謹慎的，特別是中小型鑄造廠。為了幫助老板們評估一下是否有購買的必要，我們特地整理出了下邊的一些評估要點，給傳統鑄造廠的老板們一個參考，然后根據自己的情況來決定要不要購買：

生產需求

• 產品復雜度：若鑄造廠經常生產復雜形狀、有精細結構或內部通道的鑄件，如航空發動機葉片、汽車缸體等，傳統工藝難以滿足要求，砂型3D打印機能發揮優勢。
• 生產規模與批量：對于小批量、多品種的鑄件生產，砂型 3D 打印機可靈活快速切換產品，無需制作模具，能降低成本和周期。但大規模、單一品種的鑄件生產，傳統工藝可能更具成本效益。
• 交貨期要求：若客戶對交貨期要求嚴格，砂型 3D 打印機可縮短生產周期，快速響應訂單。

cost-effectiveness

• 設備投資：需考慮砂型 3D 打印機的購買成本、安裝調試費用及后期維護成本。
• 運行成本：包括打印材料、能源消耗、人工成本等。對比傳統鑄造工藝，分析長期運行成本的高低。
• 潛在收益：考慮使用砂型 3D 打印機后，因產品質量提升、生產周期縮短、廢品率降低等帶來的潛在收益。

技術能力

• 員工技能：評估現有員工對 3D 打印技術的掌握程度，是否需要培訓或招聘專業人才。
• 技術支持：了解設備供應商的技術支持能力，包括安裝調試、培訓、故障維修等服務是否及時有效。

市場競爭

• 行業趨勢：關注同行是否已采用砂型 3D 打印技術，若競爭對手已應用并獲得優勢，為保持競爭力，鑄造廠可能需要考慮購買。
• 客戶需求：了解客戶對產品的新要求和期望，若客戶希望看到鑄造廠采用先進技術提升產品質量和生產效率，購買砂型 3D 打印機有助于滿足客戶需求，提高市場競爭力。

環保要求

• 如果當?shù)丨h(huán)保要求嚴格，傳統鑄造工藝在廢砂處理、廢氣排放等方面壓力大，砂型 3D 打印機因材料利用率高、廢棄物少等優勢，有助于企業滿足環保要求。

砂型3D打印需要哪種人才？

考慮到很多傳統鑄造企業可能沒有配備3D打印砂型鑄造相關的專業人才，我們特地整理出該崗位工人需要有具有哪些方面的技能及平時的工作職責，以便工廠在招聘時做參考。

專業要求：

1. 機械工程、材料科學、鑄造工程、增材制造等相關專業；
2. 熟悉砂型3D打?。˙inder Jetting）技術，具備相關設備操作經驗者優先；
3. 熟練使用CAD、3D建模軟件（如SolidWorks、AutoCAD、Magics等），具備基本的數據處理能力；
4. 了解鑄造工藝，熟悉砂型材料特性、后處理流程及常見鑄造缺陷分析；
5. 具備設備維護、故障排查能力，能夠獨立解決設備運行中的常見問題；
6. 良好的團隊協作能力，能夠與鑄造工程師、生產團隊密切配合，共同優化生產流程；
7. 具備較強的學習能力，能快速掌握新技術，并對增材制造在鑄造行業的應用有濃厚興趣。

Job Description:

1. 負責Sand 3D Printer的日常操作，包括設備調試、打印任務執行及質量控制；
2. 處理3D打印數據，包括CAD模型優化、切片及打印參數設置；
3. 監督打印過程，確保砂型質量符合鑄造要求，并進行必要的后處理（如清理、硬化等）；
4. 負責設備的維護保養，排查和解決打印過程中的問題，確保設備穩定運行；
5. 與鑄造技術團隊合作，優化3D打印砂型的工藝，提升鑄件質量和生產效率；
6. 研究和引進新材料、新工藝，持續改進砂型3D打印在鑄造生產中的應用；
7. 負責公司內部人員的3D打印技術培訓，提高團隊整體技術水平。

summarize

綜上所述，砂型 3D 打印技術為傳統鑄造廠帶來了諸多機遇與變革，它能有效解決傳統鑄造過程中面臨的復雜形狀零件制造難題、生產周期冗長、成本難以控制、鑄件精度欠佳以及環保壓力大等一系列棘手問題。通過綜合評估生產需求、成本效益、技術能力、市場競爭和環保要求等方面，鑄造廠老板們能夠更加科學、理性地判斷是否引入砂型 3D 打印機。而配備專業的技術人才，則是確保這項技術在鑄造廠中順利落地、發揮最大效能的關鍵。

在競爭日益激烈的鑄造市場中，主動擁抱新技術，積極做出改變，或許就能搶占先機，實現企業的轉型升級與持續發展。對于傳統鑄造廠來說，砂型 3D 打印技術不僅僅是一項技術的更迭，更是一次突破發展瓶頸、提升核心競爭力的絕佳契機。希望各位鑄造廠老板能夠結合自身企業的實際情況，充分權衡利弊，做出最適合企業長遠發展的決策，讓企業在時代的浪潮中乘風破浪，駛向更廣闊的市場藍海。

3D打印砂型鑄造，傳統鑄造廠老板必看最先出現在三帝科技股份有限公司。

1. Addressing the limitations of traditional casting processes

Difficulty in molding complex structures

Conventional casting processes often face enormous technical difficulties and high costs when manufacturing sand molds of complex shapes. For example, aircraft engine blades usually have fine and complex cooling channels inside, the traditional process of manufacturing such molds is extremely difficult. The sand 3D printer through digital modeling and layer-by-layer printing technology, can easily achieve the manufacture of complex shapes of sand molds, greatly reducing the technical threshold and cost.

Customized production is limited

With the rise of personalized consumption and niche markets, the demand for small-lot, customized castings is growing explosively. However, the traditional casting process, with its high mold opening costs and long customization cycle, is difficult to meet the market's rapid response needs. Sand 3D printers do not require molds and are able to quickly design and print sand molds according to customers' special specifications, shapes and performance requirements, greatly improving the flexibility and efficiency of customized production.

2. Enhancing production efficiency and cost control

long production lead time

Traditional sand casting requires a lengthy process of designing the mold, manufacturing the mold, commissioning the mold, etc. The manufacturing cycle for large molds often exceeds several months. During the period may also be due to design changes or mold defects lead to rework, further extending the production cycle. Sand 3D printers do not need to make molds, directly according to the digital model printing, can significantly shorten the product development cycle, improve production efficiency.

Difficulty in cost control

In the traditional casting mold manufacturing process, the material waste is serious, and the material utilization rate of complex molds is less than 30%. In addition, from the molders to the molding workers, mold repair workers, the manpower investment is large, which further pushes up the cost. Sand 3D printer on-demand printing, accurate sand, material utilization rate of more than 90%. high degree of automation in the printing process, reducing the cost of manpower, significantly reducing production costs.

3. Improving product quality

Low dimensional accuracy

Traditional sand mold due to mold wear, parting surface fitting errors and other issues, casting size deviation often exceeds ± 1mm, subsequent machining allowance, material waste. Sand 3D printer by the digital model precision drive, sand size accuracy up to ± 0.5mm or less, reducing the machining process, reducing costs.

Uneven internal quality

Traditional sand molds are prone to localized looseness, sand entrapment and other problems, resulting in uneven mechanical properties of castings, prone to cracks and other defects. Sand 3D printer can achieve uniform compactness, to avoid uneven sand loose, and at the same time, optimize the solidification process, significantly reduce shrinkage holes, shrinkage, to ensure stable and reliable internal quality of the casting, to enhance the performance and service life of the product.

4. Environmental advantages

Traditional casting mold manufacturing produces a large amount of waste metal, waste plastic, sand processing waste sand piles up. The annual capacity of 10,000 tons of castings of the factory, the annual emissions of waste sand more than 5,000 tons, high treatment costs and pollution of the environment. Sand 3D printer in the production, unused sand can be recycled and reuse, very little waste. In addition, the printing process does not require a large number of chemical binders, reducing the volatilization of harmful gases and improving the workshop environment.

5. Reasons why foundries deserve sand 3D printers

Improvement of production efficiency

Sand 3D printer can quickly respond to market demand, especially suitable for frequent re-modeling of small batch products. It allows foundries to quickly meet customers' individual customization needs and improve customer satisfaction and market competitiveness. At the same time, the sand 3D printer supports mass production, which can print a large number of high-quality sand molds in a short period of time to meet the needs of large-scale production and improve production efficiency and yield.

Reduced production costs

Sand 3D printing technology directly prints sand molds without opening molds, thus greatly reducing the cost of opening molds, especially suitable for small batch and complex structure production needs. In addition, sand 3D printing equipment can be operated with only simple training, and does not require a lot of manpower synergy, which can effectively reduce the dependence on skilled workers, so that foundries can easily cope with the recruitment difficulties and expensive labor problems.

Enhancing Product Quality

Sand 3D printers are more accurate, such as the3DPTEKof 3D printing equipment, which means that the dimensional accuracy of castings is dramatically improved, the one-time pass rate of products is significantly increased, the scrap rate is reduced, and the foundry is allowed to utilize its resources more efficiently. At the same time, the 3D printed sand mold has better precision and surface quality, reduces the amount of grinding and finishing work, makes the production process cleaner, and improves product quality and process consistency.

Optimization of production management

With a compact body design, the sand 3D printer occupies a small area and is flexible to install, which is suitable for the different site layout requirements of small and medium-sized foundries. Modular production solutions can also support easy expansion of enterprises to achieve multi-machine linkage. Part of the sand 3D printer support digital monitoring system, business managers can monitor the production progress and equipment status in real time, to achieve a fully controllable production process, equipment operation data can be automatically stored to facilitate the optimization of production strategies.

6. Concluding remarks

The emergence of sand 3D printers not only solves many problems in the traditional casting process, but also brings unprecedented opportunities for the foundry industry. It provides foundries with strong competitiveness by improving production efficiency, reducing production costs, improving product quality and optimizing production management. With the continuous progress of technology, sand 3D printers will play an increasingly important role in the future of the manufacturing industry, promoting the foundry industry to a more efficient, more environmentally friendly and smarter direction.

砂型3D打印機解決了什么核心問題？這篇文章告訴你真相最先出現在三帝科技股份有限公司。

Why is it called a sandbox-less 3D printer?

The boxless 3D printer is so named because it eliminates the use of a traditional box in the sand 3D printing process, significantly differentiating it from conventional sand 3D printers. Here's more about it from a variety of perspectives:

The role and limitations of traditional sandboxesSandboxes are an indispensable part of the traditional sand casting process and some traditional sand 3D printing techniques. It is used to hold the sand, provide molding space for the sand model, ensure that the sand maintains a specific shape during the molding process, and ensure the integrity of the sand model during transportation and box closing. However, the fixed size of the sand box limits the size of the sand mold that can be produced, and the production and maintenance costs are high. For the complex structure of the sand mold, the sand box is difficult to design and manufacture, and it may also affect the heat dissipation and air permeability of the sand mold, which may affect the quality of the castings.

How sandless box 3D printers work: The sandbox-less 3D printer adopts sandbox-less flexible area molding technology, in which abrasive and binder are stacked and molded layer by layer by the nozzle directly on the worktable. The equipment has a precise sand spreading system, which can evenly spread the sand material in the printing area, and the nozzle accurately sprays the binder according to the model cross-section information, so that the sand particles are bonded to form the sand shape layer by layer. In this process, there is no need for a sand box to provide molding space and constraints, which greatly improves printing flexibility and freedom.

Basis of namingThe naming of the 3D printer directly reflects its core technical feature, which is that it is free from the constraints of the traditional sand box, creating a new mode of sand 3D printing. This naming scheme is simple and clear, highlighting the essential difference with the traditional sand 3D printing equipment, and emphasizing its unique advantage of realizing high-precision and high-efficiency manufacturing of sand patterns without the assistance of a sand box during the printing process.

Sandless Box 3D Printer vs. Traditional Sand 3D Printer

There is a clear difference between the working principle of a boxless 3D printer and that of a traditional sand 3D printer. Traditional sand 3D printers rely on a fixed sand box to define the molding space, and rely on the sand box to provide partial support, and the print path is limited by the sand box; while sand box 3D printers use flexible area molding technology, expanding the printing platform on demand, breaking through the size limitations, and supplying the sand and binder with greater precision, and adjusting the internal sand buildup and binder injection to provide support, so the print path is more freely and flexibly planned, and it can effectively improve the printing efficiency and sand quality. It can effectively improve the printing efficiency and the quality of the sand mold.

Prospects for sandbox-less 3D printers in the foundry sector

The development of sandbox-free 3D printers in the foundry field is very promising, mainly in the following aspects:

Technological innovation and breakthroughs

Sandbox-free 3D printers continue to realize technological innovations, such as SANDI's 3DPTEK-J4000 Adoption of sandbox-less flexible area molding technology, can be customized to expand the printing platform, the maximum molding 4 meters of sand, to meet the production needs of 10 meters + level, breaking through the traditional casting equipment size limitations, for the manufacture of large and complex castings to provide the possibility of.

Significant cost advantages

On the one hand, the cost of ownership is reduced, as the price of 4-meter and larger boxless 3D printers is comparable to that of 2.5-meter machines, allowing companies to obtain larger sizes of abrasive molds at a lower cost per unit. On the other hand, material waste is reduced, as boxless 3D printers allow precise use of materials such as sand and binder, reducing production costs.

Strong growth in market demand

Aerospace, automotive, energy power and other fields of large, complex, high-precision castings demand continues to rise. For example, the manufacture of aircraft engine components, automotive engine block, etc., sandless 3D printers can meet the high-performance requirements for castings in these fields, the market potential is huge.

Significant increase in design freedom

The sandless box 3D printer can manufacture complex geometric shapes and cavities that are difficult to achieve by traditional methods, realizing parts integration and lightweight design, providing more space for product innovation and helping to improve product performance, reduce costs and enhance the market competitiveness of enterprises.

Significant increase in productivity

Compared to traditional mold making methods, sandbox-less 3D printing of sand molds or cores takes only a few hours to a few days, dramatically shortening the development and production cycle of new products, helping manufacturers respond faster to changes in market demand, and improving productivity and economic efficiency.

Superior environmental performance

Sandless 3D printers use materials on demand, reducing waste and disposal costs of leftover materials, and some of the equipment can use environmentally friendly materials and binders, which reduces environmental pollution, meets the requirements of sustainable development, and helps foundry companies to meet the increasingly stringent restrictions of environmental regulations.

Deepening Industrial Integration

The integration of sand box 3D printer and foundry is deepening, enterprises through mergers and acquisitions of foundries and other ways to open up the "3D printing + casting" process, to provide the whole industry chain overall solution, and promote the foundry industry to the green, intelligent, high-end direction of development.

探索無砂箱3D打印機最先出現在三帝科技股份有限公司。

I. High-precision and complex structure manufacturing capability

Sand mold 3D printers are able to create sand molds with extreme precision, which is essential for producing high-quality castings. While traditional methods of sand mold making are often overwhelmed by the complexity of the structures, 3D printing makes it easy. It is able to accurately reproduce every detail of a design drawing, whether it is a complex internal cavity, a fine texture or a thin-walled structure. This high-precision manufacturing capability not only improves the dimensional accuracy and surface quality of the castings, but also reduces subsequent machining processes and production costs. For example, in the aerospace field, some key components require extremely high precision, and sand mold 3D printers can produce sand molds that meet strict standards, thus ensuring the quality and performance of the final casting, and meeting the demanding requirements of aerospace products for safety and reliability.

II. Shortening the production cycle

The traditional sand mold production process is usually more cumbersome, need to go through the mold design, production, assembly and other aspects, consuming a lot of time. Sand mold 3D printer greatly simplifies this process, it can be directly based on the digital model of the sand mold layer by layer printing, without the need to make molds and complex assembly operations. This shortens the production cycle significantly, enabling companies to bring products to market faster and seize the first opportunity. Taking automobile manufacturing as an example, the development cycle of new models is often very tight, sand mold 3D printer can make sand molds for automobile engines and other parts in a short period of time, accelerating the trial production process, helping enterprises to verify and optimize their products faster, and improving the overall research and development and production efficiency.

III. Cost reduction

The purchase of a sand mold 3D printer requires a certain initial investment, but in the long run, it can bring significant cost reductions for enterprises. On the one hand, as mentioned earlier, it reduces the mold making and assembly in the traditional sand mold making process, reducing labor costs and mold costs. On the other hand, as 3D printing can realize high-precision manufacturing, it reduces the scrap rate and subsequent processing costs. In addition, 3D printing technology can also optimize the design of the sand mold, so that it meets the requirements of the premise of more lightweight, thus reducing the use of casting materials, further reducing costs. For some small batch but a variety of products for the enterprise, sand mold 3D printer cost advantage is more obvious, because it does not need to make a special mold for each product, greatly reducing the production cost and inventory pressure.

IV. High degree of design freedom

Sand mold 3D printers offer designers a high degree of design freedom. Traditional manufacturing processes are often limited by the structure of the mold and the manufacturing method, and designers need to consider many process factors when designing a product, thus compromising the design. 3D printing technology, on the other hand, breaks down these limitations and allows designers to give full play to their imagination and design more innovative and unique product structures. For example, they can design castings with complex internal runners to optimize product performance, such as improving heat dissipation efficiency or fluid flow performance. This increased design freedom not only helps companies develop more competitive products, but also promotes innovation in the industry as a whole.

V. Personalization

With the diversification of market demand and the trend of individualization becoming more and more obvious, personalized customization has become an important development direction of the manufacturing industry. Sand mold 3D printer can precisely meet this demand, it can according to the customer's specific requirements, quickly create a unique sand mold, to achieve personalized custom production. Whether it is a single piece of customization or small batch customization, sand mold 3D printer can easily deal with. This is important for some high-end equipment manufacturing, medical equipment and other fields.

VI. Environmental protection and sustainable development

In today's era of environmental protection and sustainable development, sand mold 3D printers also have certain advantages. The traditional sand mold production process will produce a large number of waste and pollutants, such as waste mold materials, chemical reagents, etc., causing greater pressure on the environment. The sand mold 3D printer in the manufacturing process is relatively more environmentally friendly, it is mainly used in sand and other environmentally friendly materials, and can be optimized through the design and printing parameters to reduce the waste of materials. In addition, because 3D printing technology can achieve precision manufacturing, reducing the production of scrap, further reducing the impact on the environment. Therefore, the purchase of sand mold 3D printers is in line with the company's environmental philosophy and social responsibility, and helps the company achieve sustainable development.

To sum up, purchasing sand mold 3D printer has many advantages, including high precision and complex structure manufacturing ability, shorten the production cycle, reduce costs, high design freedom, personalized customization and environmental sustainability. For modern manufacturing enterprises, sand mold 3D printer is not only a kind of advanced production equipment, but also an important tool to enhance the competitiveness of enterprises and realize innovative development and sustainable development. With the continuous progress of technology and the continuous expansion of the application, I believe that the sand mold 3D printer will play an important role in more areas, for the development of the manufacturing industry to bring new opportunities and changes. Therefore, when considering the production upgrade and development strategy of enterprises, the purchase of sand mold 3D printer is a choice worth serious consideration.

為什么要購買砂模3D打印機最先出現在三帝科技股份有限公司。

This sand 3D machine is a technological breakthrough. It adopts the sandbox-less flexible zone molding technology, an innovation that allows it to mold sand molds up to 4 meters in size, and can customize the extended printing platform according to the actual needs, even to meet the production needs of the 10 meter + level, and the 7 meter machine is now available for pre-order. This breakthrough breaks the traditional casting equipment in the size of the limitations, for the production of large castings to provide the possibility. In the past, the manufacture of large sand molds faced many difficulties, not only requiring huge equipment and complex processes, but also high costs and low efficiency. The emergence of 3DPTEK-J4000 has changed this situation, making the manufacture of large sand molds more convenient and efficient.

In terms of economic performance, this domestic sand 3D machine also has significant advantages. It breaks the conventional phenomenon that the larger the molding size of the equipment, the higher the price, 4 meters and larger size equipment and 2.5 meters equipment price difference. This means that companies can obtain larger sand molding capacity at a lower unit cost, significantly reducing production costs. At the same time, the shorter delivery time also improves productivity and enhances market competitiveness. In today's fierce market environment, cost and efficiency are the key factors for the survival and development of enterprises, 3DPTEK-J4000 undoubtedly provides strong support for foundry enterprises.

In terms of equipment parameters, 3DPTEK-J4000 also demonstrates its professionalism and advancement. The main body covers an area of 21000×7000×4000mm and weighs about 45t, such a huge body contains fine craftsmanship. The resolution of the nozzle is up to 400dpi, which can guarantee the precision and quality of the sand mold, and the molding thickness is between 0.2 - 0.5mm, which can meet the requirements of different castings. In terms of molding materials, it is compatible with quartz sand, ceramic sand and other materials, providing more choices for enterprises.

3DPTEK-J4000 The application areas are wide-ranging and cover a number of important industries such as aerospace / space, high voltage electrics, energy power, industrial machinery / marine pumps and valves, automotive (fuel / new energy) and many others. In the aerospace industry, high precision sand molding is essential for manufacturing complex aero-engine components and spacecraft structures. This sand molding 3D machine can meet the strict requirements of aerospace parts for precision and performance, providing strong technical support for the development of China's aerospace industry. In the automotive industry, whether it is a fuel-fired vehicle or a new energy vehicle, the manufacture of key components such as engine blocks and transmission cases requires high-quality sand molding. 3DPTEK-J4000 can be used to improve the manufacturing precision and efficiency of automotive parts, reduce production costs, and improve the overall performance and quality of the automobile.

In addition, 3DPTEK-J4000 also focuses on after-sales service, good after-sales service is an extension of product quality, which can make users feel more at ease in the process of use, solve problems encountered in a timely manner, and ensure the smooth progress of production.

The appearance of the latest domestic large-size sand 3D machine 3DPTEK-J4000 is the result of the continuous innovation and development of China's manufacturing industry. With its advanced technology, superior performance, wide range of applications and perfect after-sales service, it brings brand new development opportunities for the foundry industry. Here is an article discussing in detail asWhat to buy sand 3D printerThe

In the future, with the continuous progress of 3D printing technology and the in-depth promotion of its application, I believe that this sand 3D machine will play an important role in more fields, promote the development of manufacturing industry to the direction of high-end, intelligent and green, and inject a new impetus for high-quality development. We also look forward to domestic 3D printing technology can continue to innovate, make more breakthroughs, in the international arena to show the strong strength of China's manufacturing industry.

國產最新大尺寸砂型 3D打印機：創新引領鑄造業變革最先出現在三帝科技股份有限公司。

Improve foundry efficiency

• Reduced mold costs: With industrial sand 3D printing there is no need to make expensive molds, reducing overall production costs.
• Increasing productivity: Additive manufacturing enables rapid production of sand molds and cores, shortening lead times and increasing productivity.
• Reduced labor costs: Automated 3D printing of sand molds minimizes the labor costs associated with traditional manual molding and core making processes.

Improvement of casting quality

• Improved accuracy and consistency: Industrial sand 3D printing ensures accuracy and consistency in the production of sand molds and cores, resulting in higher quality castings.
• Reduced defect rate: Additive manufacturing minimizes the risk of human error, reducing defect rates and the need for rework or scrap.
• Production of structurally complex parts: Sand 3D printing is capable of producing complex geometries and detailed designs that are difficult or impossible to achieve with traditional methods. Think back, don't you often come across pieces with very complex structures that are so costly or even impossible to produce using traditional casting methods that you end up having to give up on the order. With sand mold 3D printers, these are no longer problems.

Cost savings and competitiveness

• Reduction of material waste: Industrial sand 3D printing minimizes material waste, reduces costs and lowers environmental impact.
• Reduced production costs: Additive manufacturing can reduce production costs by as much as 50% compared to traditional methods.
• Improving competitiveness: Foundries using industrial sand 3D printing can gain a competitive advantage in terms of cost, quality and delivery time.

Design and production flexibility

• Design for Additive Manufacturing: Industrial sand 3D printing enables foundries to produce complex designs that were previously impossible or impractical.
• Rapid Prototyping and Production: Additive manufacturing enables rapid prototyping and production, allowing foundries to respond quickly to changing customer needs.
• Production Flexibility: Sand 3D printing enables foundries to produce small batches or one-off castings, ideal for small production runs or prototyping.

Other key advantages

• Improved security: Industrial sand 3D printing reduces the risk of accidents and injuries associated with traditional molding and coremaking processes.
• environmental benefit: Additive manufacturing minimizes material waste, reduces energy consumption and enables the use of recycled materials.
• Data-driven production: Industrial sand 3D printing enables data-driven production, enabling foundries to monitor and optimize their production processes in real time.

By adopting industrial sand 3D printers, foundries are able to increase efficiency, improve casting quality, reduce costs and increase competitiveness, ultimately realizing increased profitability and business success.

Traditional foundries face a number of challenges and difficulties, including:

• Tooling costs and lead times: Making molds and models is a time-consuming and expensive process that can take weeks or even months to complete.
• Labor costs and shortages: Foundry work requires skilled labor, which may be difficult to find and retain in areas with labor shortages.
• Material waste and energy consumption: Conventional casting processes lead to significant material waste and energy consumption, which can increase costs and have an environmental impact.
• Quality control and defect rates: Achieving consistent quality and minimizing defect rates can be challenging, especially for complex geometries and high volume production.
• Complexity and design constraints: Conventional casting methods make it difficult to produce complex geometries, fine designs and thin-walled castings.
• Increased global competition: Foundries face increasing competition from low-cost producers in other regions, making it difficult to maintain profit margins.
• Environmental and safety regulations: Foundries must comply with increasingly stringent environmental and safety regulations, which can be both time-consuming and expensive.
• Customer demand for faster delivery: Customers are demanding shorter lead times and faster delivery, which can be difficult for traditional foundries to meet.
• Fluctuations in production volume: Foundries are often faced with fluctuating production volumes, which can make it difficult to maintain efficiency and optimize resources.
• technological obsolescence: Traditional foundries may struggle to keep up with technological advances, such as additive manufacturing, which may render their processes obsolete.

To overcome these challenges, many foundries are adopting new technologies, such as industrial 3D printing, to improve efficiency, reduce costs and increase competitiveness. SANDY Technology has introduced a number of specialized foundry-readySand 3D PrinterThe process covers SLS (selective laser sintering), binder jetting, and foundry partners can focus on it.

砂型鑄造3D打印機在鑄造業中的商業價值最先出現在三帝科技股份有限公司。

Recently, the list of "2024 Global Foundry Industry Innovative Technology and Product Awards" was announced.Beijing SANDI Technology Co.(hereinafter referred to as "SANDY Technology") was honored as "2024 Global Foundry Industry Innovative Technologies and Products" for its self-developed large-size 3DP sand printer 3DPTEK-J4000.

The equipment breaks through the traditional processing size limitations, and can form sand molds of up to 4 meters. Innovative use of no sand box flexible area molding technology, support for local printing, only 2 meters + the price of the equipment, can be economically and efficiently realize the manufacture of sand molds of oversized (7 meters of equipment synchronization to accept reservations). At the same time, the company provides open-source material process, which can be adjusted according to the user's needs; supporting high-performance resin binder, curing agent, cleaning agent, to ensure the quality and stability of molding.

For more details, please pay attention to the "75th World Foundry Conference", which will be held in Deyang City, Sichuan Province on October 26-28, SANDY will bring 3D casting solutions (Booth No. B13) to the exhibition and make a wonderful sharing in the "2024 Global Foundry Innovation Technology and Product Launch" on the 27th. Innovative technologies and products conference" in the 27th to do wonderful sharing.

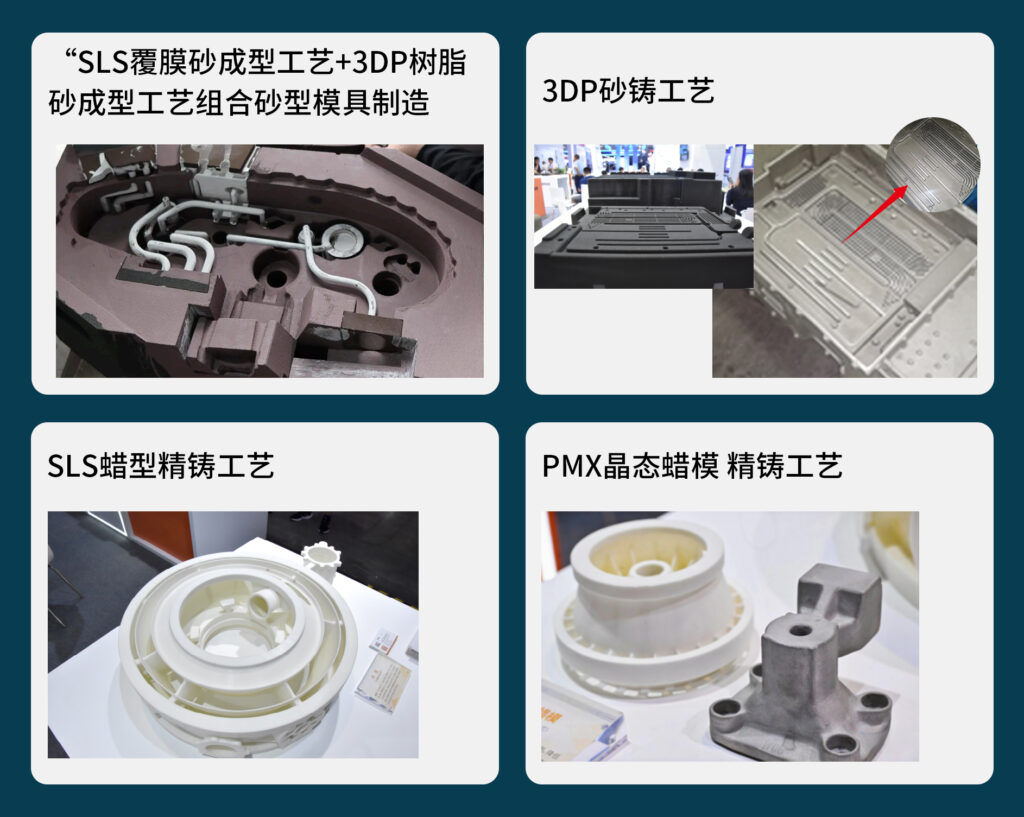

Chart:3D Casting Solutions

三帝科技4米3DP砂型打印機榮登2024全球鑄造行業創新技術與產品榜單最先出現在三帝科技股份有限公司。

I. Understanding your own needs

Analyzing the current situation of factory production

• Evaluation of traditional process: Carefully review the traditional casting process currently used in the factory, including the way the molds are made (e.g., wood molds, metal molds, etc.), the molding process (hand molding or machine molding), and the process of melting and pouring. Evaluate the time, labor, and material costs as well as the problems associated with each process. For example, traditional wooden mold making can take weeks and is prone to dimensional deviations and damage; hand molding is labor-intensive, inefficient and inconsistent in quality.
  • Product Characterization: Define the type of castings that the plant will mainly produce, whether they are castings with simple structures or castings with complex internal cavities, thin-walled structures or finely curved surfaces. Determine the size range of the castings, from small castings of a few centimeters to large castings of several meters. At the same time, analyze the requirements for casting accuracy, for example, certain aerospace castings may need to be millimetre accurate or even higher. In addition, the material of the casting should be considered, which may vary from material to material in terms of casting process and equipment requirements.
  • Production scale considerations: Evaluate the daily production scale of the plant, including monthly or annual casting production. Understand the characteristics of the production orders, whether it is a large number of single product production or small quantities of multi-species production. For the peak and trough production capacity changes also need to have a clear understanding, which will affect the selection of equipment and production arrangements.

Defining goals and desired improvements

• Cost control objective: If cost reduction is the main objective, the cost composition of each link needs to be analyzed. Mold production costs account for a large proportion of the traditional process, and sand 3D printers can eliminate the mold production process, significantly reducing this part of the cost. At the same time, considering labor costs, 3D printers have a high degree of automation, which can reduce the reliance on labor. In terms of material costs, although 3D printing requires specific sand and binder, material utilization can be improved by precisely controlling the amount of material used, and waste can also be reduced through the re-cycling of sand. In addition, the 3D printing process can optimize the structure of sand molds and reduce the amount of sand used through lightweight design. For example, for a medium-sized foundry, by introducing sand 3D printers, the cost of molds may be reduced by 40%, the labor cost by 30%, and the material cost savings by about 20%.
  • Efficiency Improvement Requirement: For foundries pursuing productivity improvement, focus on the molding speed of the equipment. Sand 3D printers can print a complex sand pattern in a few hours, compared with the traditional mold making and molding weeks, a significant increase in efficiency. In addition, 3D printers can print multiple sand molds at the same time, or zone printing on a large sand mold, greatly reducing the overall production cycle. For example, after the introduction of 3D printers in an automotive parts foundry, the product development cycle has been shortened from several months to a few weeks, and production efficiency has been increased by more than 50%.
  • Quality Improvement Expectations: The ability of sand 3D printers to print with high precision is critical when higher quality products are required. It can precisely control the size and shape of the sand mold, reducing dimensional deviations and surface defects in the castings. At the same time, due to the stability and consistency of the printing process, it can improve the internal quality of castings and reduce defects such as porosity and slag entrapment. For example, in some high-end equipment manufacturing fields, the scrap rate of 3D printed sand castings has been reduced from 10% in the traditional process to less than 2%, and the product quality has been greatly improved.
  • Flexibility enhancement direction: for foundries that need to respond to small batch, multi-variety production needs or personalized custom orders, the advantages of sand 3D printer is particularly obvious. It does not need to make physical molds, can be quickly switched to produce different products according to the digital model, greatly improving the flexibility of production. For example, some art foundries or customized parts production enterprises, through the 3D printing technology can meet the diverse needs of customers, broadening the market space.

Evaluation of key features of sand 3D printers

Printing Accuracy

• Impact of precision on casting quality: Printing precision directly determines the dimensional accuracy and surface quality of castings. High-precision printing can ensure that the dimensional deviation of the castings is within a very small range and meet the strict assembly requirements. In terms of surface quality, high-precision printing can reduce the roughness and defects on the surface of the casting and improve the appearance quality of the casting. For example, in the production of key components such as engine blocks, high-precision sand molding can ensure the precision of the fit between the piston and the cylinder block and improve the performance and reliability of the engine.
  • Choosing the right precision equipment: First, the required precision level is determined according to the design requirements and usage scenarios of the product. For some common mechanical parts, millimeter-level accuracy may be sufficient; while for high-precision castings in aerospace, medical devices and other fields, sub-millimeter or even higher accuracy may be required. Secondly, understand the precision parameters of different devices, including layer thickness and dimensional error range. You can refer to the technical information and actual test data provided by the manufacturer, while exchanging experiences with other users. For example, 3DPTEK sand 3D printers are capable of achieving a dimensional accuracy of ±0.3mm, which is suitable for the production of castings with high accuracy requirements.
  • Comparison of different precision level equipment and applicable scenarios: low-precision equipment is usually relatively low-priced, applicable to some production scenarios that do not require high precision and focus on cost control, such as ordinary construction machinery castings. Medium-precision equipment balances price and performance, and is suitable for the production of most industrial parts. High-precision equipment, on the other hand, is suitable for high-end manufacturing areas, such as aerospace, precision instruments, etc., but the price is relatively high. For example, in the production of automobile engine cylinder head, medium-precision equipment can meet the basic production requirements; for aero-engine blades and other high-precision castings, you need to choose high-precision equipment.

Print Size

• Print size in relation to production scale and casting size: For large foundries, equipment capable of printing large castings is often required to meet production demands. For example, in the production of large ship engine block, may require several meters or even larger size printing equipment. For small foundries or production of small castings of enterprises, the smaller size of the equipment may be more economical and practical. At the same time, the print size also affects the footprint and space requirements of the equipment, which need to be taken into account in factory planning.
  • Selection strategy: according to the factory's production planning and market positioning to determine the required print size. If the main production of large castings, you need to choose a larger print size of the equipment; if the main small castings, you can choose small or medium-sized equipment. Also consider the future development needs, set aside a certain amount of capacity expansion space. In addition, pay attention to whether the equipment print size can be flexibly adjusted, for example, some equipment can be replaced by the printing platform, or even no sand box printing to adapt to the production of castings of different sizes. For example, a medium-sized foundry plans to expand into the field of large-scale casting production in the future, then in the selection of equipment, you can give priority to those with upgradable print size or modular design of the equipment in order to expand in the future according to demand.

Equipment stability and reliability

• The importance of stable operation of equipment: in casting production, the stability of equipment is crucial. Once the equipment failure, it may lead to production interruption, affecting the delivery date, and bring great economic losses to the enterprise. Especially for the continuous production of foundry, equipment for a long time stable operation is to ensure production efficiency and product quality basis. For example, in the automotive parts casting production line, if the 3D printer frequently fails, it will lead to production line stagnation, affecting the whole car production schedule.
  • Examine methods of stability and reliability:
    • Check the manufacturer's quality control system: understand the manufacturer's production quality management process, including raw material procurement, parts processing, assembly and commissioning and other aspects of quality control measures. A manufacturer with a perfect quality control system is usually able to produce more stable and reliable quality equipment. For example, some well-known manufacturers of each component are strictly quality testing to ensure that it meets the high standards of quality requirements.
    • User Word of Mouth: Communicate with users who have already used the device to understand their evaluation of the stability and reliability of the device. The actual use experience of users is the most direct and real feedback. You can participate in industry exhibitions, join professional communities and other ways to establish contact with other users to get their opinions and suggestions. For example, some foundries will prioritize those brands with good reputation in the same industry when choosing equipment.

Software Support

• Excellent software features and functions:
  • Model Processing: Powerful 3D printing software can efficiently process complex casting models, including model repair, optimization, slicing and other functions. For example, for some models imported from CAD software that may be defective or unsuitable for printing, the software can automatically detect and repair these defects to ensure that the model can be printed smoothly.
  • Printing parameter setting: The software should provide a wealth of printing parameter setting options, such as printing speed, layer thickness, nozzle temperature, binder dosage and so on. Users can according to different casting requirements and material properties, precise adjustment of these parameters to obtain the best printing results. For example, for thin-walled castings, it may be necessary to adjust the layer thickness and printing speed to ensure the strength and precision of the sand mold.
  • Production process management: the software should also have production process management functions, including order management, task scheduling, equipment monitoring. This can help foundries realize efficient production management and improve production efficiency. For example, through the software can real-time monitoring of the operating status of the equipment and printing progress, rationalize the arrangement of production tasks to avoid production congestion.
  • Evaluate software for ease of use, functional integrity, and compatibility with devices:
    • Ease of use: the operating interface of the software should be simple and clear, easy to get started. With an intuitive graphical interface and clear operating procedures, even non-professional technicians can quickly master. Ease of use can be assessed by trying out the software or viewing a demo video of the software in action. For example, some software adopts a wizard-type operation process, users only need to follow the prompts step-by-step operation to complete the entire printing process.
    • Functional completeness: Check whether the software has the basic functions mentioned above such as model processing, printing parameter setting, production process management, and whether there are some special features such as automatic optimization algorithms, remote control and so on. The more complete the function, the higher the applicability and flexibility of the equipment. For example, some software has intelligent optimization algorithms, which can automatically adjust the printing parameters according to the shape and structure of the casting to improve printing efficiency and quality.
    • Compatibility: Ensure that the software has good compatibility with the device and can drive the device stably for printing. Also consider the compatibility of the software with other design software, such as CAD software, for smooth model import and processing. You can check the software's technical documentation or consult with the manufacturer to find out what file formats and software interfaces it supports. For example, some software supports common file formats such as STL, OBJ, etc., and can work seamlessly with most CAD software.

III. Cost and return on investment analysis

Equipment purchase costs

• Price range for different brands and configurations: The price of sand 3D printers varies depending on the brand, technology level, print size, accuracy and other factors. Generally speaking, the price of equipment from European and American brands is relatively high, and may be in the millions or even tens of millions of dollars; the price of equipment from Chinese brands is relatively low, and may range from hundreds of thousands of dollars to millions of dollars depending on different configurations. For example, some high-end European and American equipment with advanced technology and excellent performance, but the price is very expensive; and some of China's emerging brands of equipment in the price-performance ratio is more advantageous, such as 3DPTEK, this brand is more famous in China, the equipment is very cost-effective, while 3DPTEK operates its own almost 10 foundries, but also dozens of foundry enterprises in China to provide Equipment, it can be said that the market has been strictly verified, is a very good choice.
  • Analysis of the reasons for price differences:
    • Technology level: Advanced printing technology, high-precision control system, stable mechanical structure, etc. will increase the cost of the equipment. For example, equipment using laser sintering technology is usually more expensive than equipment using ordinary binder jetting technology, because laser sintering technology offers higher precision and better sand strength.
    • Brand influence: well-known brands usually invest more in research and development, production, after-sales service, etc., and their brand value will also be reflected in the price of equipment. Some brands with many years of industry experience and good reputation, often able to provide more reliable equipment and better service, but the price is also relatively high.
    • After-sales service: perfect after-sales service system, including equipment installation and commissioning, training, maintenance, technical support, etc., will increase the manufacturer's operating costs, which is reflected in the price of equipment. Some manufacturers provide 24-hour online technical support, rapid response maintenance services, etc., which will have an impact on the price.

operating cost

• Cost of supplies:
  • Sand: Sand used in sand 3D printers typically needs to meet certain grain size, shape, and strength requirements. Prices for different qualities of sand vary and fluctuate with market supply and demand. For example, some high-strength, low-dust specialty sands may be relatively expensive, but can improve the quality of the sand pattern and printing results.
  • Binder: Binder is the key material to bond the sand together to form the sand mold, and its price will also affect the operating cost. Different types of binder differ in performance and price, and need to be selected according to actual needs. At the same time, the amount of binder will also affect the cost, some advanced printing technology can reduce the amount of binder used to reduce costs.
  • Energy consumption cost: the equipment will consume electricity during operation, and its energy consumption cost is related to the power of the equipment, running time, electricity price and other factors. When choosing equipment, you can focus on the energy efficiency ratio of the equipment and choose energy-saving equipment. For example, some devices use advanced energy-saving technologies that can reduce energy consumption under the premise of ensuring print quality. High-power devices usually consume more energy per unit of time, and if the device runs continuously for a long time, the cost of energy consumption will increase significantly. And the difference in electricity prices in different regions will also have an impact on the cost, such as industrial power consumption in concentrated areas may have certain preferential policies on electricity prices, need to take these factors into account to accurately assess the cost of energy.
  • Equipment Maintenance Costs: Regular maintenance and upkeep of equipment is necessary to ensure its normal operation and incurs certain costs. Including the replacement of wearing parts, equipment cleaning, calibration and other aspects of the cost. Some manufacturers will provide equipment maintenance service packages, foundries can choose according to their own situation. At the same time, the reliability and stability of the equipment will also affect the maintenance costs, low failure rate of the equipment maintenance costs are relatively low. For example, some equipment using high-quality components and advanced design, reducing the frequency of replacement of wear parts, reducing maintenance costs.

Return on investment assessment

• Cost savings analysis:
  • Mold Cost Savings: As mentioned earlier, the cost of making molds in a traditional casting process is high, whereas sand 3D printers eliminate the need to make physical molds, which can significantly reduce this cost. Mold cost savings can be assessed by calculating the difference between the cost of making a traditional mold and the cost of 3D printing a sand mold. For example, a complex casting can cost tens of thousands of dollars to make the mold, whereas with a 3D printed sand pattern, this cost can be reduced by more than 80%.
  • Labor Cost Savings: Due to the high degree of automation in 3D printers, the reliance on labor is reduced. Labor cost savings can be calculated by comparing the amount and cost of labor in a traditional process to the labor requirements with the adoption of 3D printing. For example, a traditional casting line may require dozens of workers for mold making, molding, etc., whereas with the adoption of 3D printers, only a few operators may be needed for equipment monitoring and maintenance, and labor costs can be reduced by about 50%.
  • Material Cost Savings: Material costs can be reduced by accurately controlling the amount of material used and improving material utilization. For example, while traditional molding processes may produce large amounts of waste sand and scrap, 3D printing can reduce waste by accurately controlling material usage based on the model. At the same time, some 3D printed materials can be recycled, further reducing costs.
  • Increased revenue from efficiency gains:
    • Reduced cycle time: Sand 3D printers can significantly reduce product development and production cycles. For some products that need to be on the market urgently, early delivery can result in a higher market price and competitive advantage. The value of the efficiency gains can be assessed by calculating the additional benefits of delivering products earlier. For example, by adopting 3D printing technology, an automotive parts foundry shortened the development cycle of new products from 6 months to 2 months, and entered the market ahead of schedule, gaining a higher market share and sales revenue.
    • Increased capacity: Efficient operation of the equipment and rapid prototyping capabilities can increase the capacity of the plant, thereby increasing sales revenues. The increased capacity and corresponding sales revenue can be projected based on the plant's production schedule and market demand. For example, if a foundry was producing 1,000 castings per month and the introduction of 3D printers increased capacity to 1,500 castings, and assuming a profit of $100 per casting, the increase in profit would be $50,000 per month.
  • Calculation of the payback cycle: The feasibility of the investment is assessed by calculating the payback cycle, taking into account factors such as equipment purchase costs, operating costs, cost savings and increased revenue. The payback cycle refers to the time it takes from the time the equipment is put into use to the time it takes to recover the full investment. For example, assuming that the purchase cost of a sand 3D printer is $2 million, and that cost savings and increased revenue total $800,000 per year, the payback cycle will be about 2.5 years. The potential impact of market changes, technology updates, and other factors on the payback cycle also needs to be considered in order to make a more accurate assessment.

IV. Market research and brand selection

Collecting market information

• Industry exhibitions: Attending foundry industry exhibitions at home and abroad is an important way to get information about the sand 3D printer market. The exhibition can directly contact with many equipment manufacturers to understand their latest products and technologies. At the exhibition, you can have in-depth communication with the technical personnel and sales staff of the manufacturers to obtain detailed product information and quotations. At the same time, you can also observe the live demonstration of the equipment, visualize the performance of the equipment and the operation process. For example, in some large international foundry exhibitions, there will be well-known manufacturers from all over the world to display their latest equipment and technology, providing foundries with a wealth of choices.
  • Professional websites: there are many professional casting equipment websites and industry forums, which gather a large amount of equipment information, user reviews and technical articles. By browsing these sites, you can understand the characteristics of different brands of equipment, user feedback and market trends. Some sites also provide equipment comparison and selection tools to help users better choose the right equipment for themselves. For example, on some professional websites, you can find detailed parameter comparisons of different brands of sand 3D printers and real user reviews, which provide reference for purchasing decisions.
  • User forums: Join user forums or communities in the foundry industry to exchange experiences with other foundry users. These users usually share their actual experience of using different equipment, the problems they encountered and the solutions. Their experiences and suggestions are very valuable for new users and can help avoid some common mistakes and pitfalls. For example, in some forums, users will share information about the actual use of the equipment, the quality of after-sales service, etc., which can provide reference for other users when choosing equipment.

Assessing brand reputation

• Manufacturer qualifications: Check the qualification certificates and honorary awards of the equipment manufacturers to understand their status and influence in the industry. For example, some national specialties and new "small giants" enterprises, high-tech enterprises, with ISO quality management system certification, etc., these qualifications prove that the manufacturer's strength in technology research and development, production management and other aspects. Honors and awards, such as the industry's scientific and technological innovation awards, excellent product awards, etc., also reflects the manufacturer's products in the technology and quality has been recognized.
  • Production experience: Manufacturers with rich production experience are usually more secure in product quality and after-sales service. You can find out how long the manufacturer has been engaged in the production of sand 3D printers, the scale of production and past project experience. A manufacturer that has been in the industry for many years and has provided equipment and solutions to many foundries is often more trustworthy. For example, certain manufacturers have been in the 3D printing and casting field for decades and have accumulated a wealth of experience, enabling them to provide personalized solutions based on the needs of different foundries.
  • Technology R&D strength: focus on the manufacturer's technology R&D investment and innovation ability. Advanced technology is a guarantee of equipment performance and quality, whether the manufacturer has its own R & D team, patented technology and cooperation with scientific research institutions can be used as a basis for assessment. For example, some manufacturers continue to invest in R & D funds, the introduction of new printing technology and features to meet the changing needs of the market, such manufacturers are more forward-looking in technology.
  • Market share and user evaluation: Knowing the market share of the brand's equipment can reflect its popularity and competitiveness in the industry. At the same time, by checking the evaluation of other users, you can get the real feedback about the quality, performance and after-sales service of the equipment. You can search online for user reviews, consult industry experts or directly contact other foundries to learn how they feel about the use of the brand's equipment. For example, if a brand of equipment in the market has a high share and the user evaluation is generally good, then it means that the brand is excellent in all aspects.

Field trips and prototype testing

• Field inspection: If the conditions allow, it is recommended to go to the equipment manufacturer for field inspection. You can visit the manufacturer's production workshop to understand its production process, quality control process and the advanced degree of production equipment. Observe whether the manufacturer's production management is standardized, and how the technical level and work attitude of the staff. At the same time, you can also have an in-depth communication with the technicians and managers of the manufacturers to understand their technical strength and service concept. For example, in the production workshop, you can check the assembly process of the equipment, the quality of the parts and the quality inspection link in the production process.
  • Prototype testing: Seeking to conduct prototype testing is a very important step. Prototype testing at the manufacturer or your own factory, inputting the actual casting model into the equipment, observing the printing process of the equipment, the quality of the sand mold, and the stability and reliability of the equipment. Through the prototype test, you can visualize whether the equipment meets your production needs and quality requirements. In the testing process, pay attention to record the printing time, sand accuracy, surface quality and other key data, and compare them with the technical parameters provided by the manufacturer. For example, you can prepare some representative models of complex castings for testing and observe the performance of the equipment in handling complex structures. Remember, this is very important, if you temporarily can not visit the site, even if you have to pay the cost (pieces are not big, generally manufacturers will be free to play, or at cost to help you play) but also to strive to let the manufacturer to print samples, which is the most intuitive understanding of the equipment.

V. After-sales service and technical support

After-sales service content

• Equipment installation and commissioning: the installation and commissioning of the equipment is the basis for ensuring the normal operation of the equipment. Excellent after-sales service should include a professional installation team to ensure that the equipment can be properly installed and initial commissioning and calibration. During the installation process, the basic structure and operation methods of the equipment should be explained to the user so that the user can initially understand the equipment. For example, the installers will reasonably arrange the installation position of the equipment according to the actual layout of the factory and the production demand, and carry out the connection and debugging of electrical and mechanical aspects.
  • Training: Comprehensive training services are crucial for users. The training content should include the operating skills of the equipment, the use of software, routine maintenance knowledge and common troubleshooting methods. Training can be divided into on-site training and online training in two forms to meet the needs of different users. For example, on-site training can be carried out after the completion of equipment installation, face-to-face guidance by professional trainers; online training can be through video tutorials, online classrooms and other ways to allow users to learn anytime, anywhere.
  • Maintenance: Timely and efficient maintenance service is the guarantee of long-term stable operation of the equipment. After-sales service should include regular equipment maintenance, such as cleaning, lubrication, inspection, etc., as well as in the event of equipment failure can quickly respond and repair. Manufacturers should provide sufficient spare parts inventory to ensure that damaged parts can be replaced in a timely manner during the maintenance process. For example, when equipment malfunctions, the after-sales service team should arrive at the site within a specified period of time to diagnose and repair the problem and minimize the impact of equipment downtime on production.
  • Software upgrade: With the continuous development of technology, the software of the equipment also needs to be upgraded and optimized. After-sales service should include regular software upgrade services to improve the performance and functionality of the equipment. Software upgrades can be carried out remotely through the network or by technicians at home to ensure a smooth and safe upgrade process. For example, the new software version may add some new functions, such as optimizing printing algorithms, improving printing speed and precision, etc., to bring users a better experience.

The Importance of Technical Support

• Solving technical problems: In the process of using the equipment, you may encounter various technical problems, such as the optimization of printing parameters, the improvement of the quality of the sand pattern, and the compatibility problems with other equipment. Professional technical support team can provide timely solutions to help users solve these problems and ensure smooth production. For example, when encountering the problem of substandard printing accuracy, the technical support staff can analyze the printing parameters, equipment status and other factors to give the corresponding adjustment recommendations to improve printing accuracy.
  • Optimized printing parameters: Different castings and production environments may require different printing parameter settings. Technical support personnel can provide optimized printing parameters according to the specific needs of the user and the actual situation, in order to achieve the best printing effect and production efficiency. For example, for some complex structure castings, technical support personnel can adjust the layer thickness, nozzle moving speed, binder dosage and other parameters according to its characteristics to improve the quality and strength of the sand mold.
  • Provide process improvement suggestions: With the accumulation of production experience and technological progress, process improvement is an important way to improve production efficiency and product quality. The technical support team can provide suggestions and solutions for process improvement according to the latest development of the industry and the actual situation of users. For example, by optimizing the production process and improving the molding method, etc., the overall production level of the foundry can be improved.

VI. Summary and recommendations

Summarize buying points and considerations

• Clear demand: Before purchasing, you must have a clear understanding of the current production status of their own factories, product characteristics, development planning, etc., clear their needs and expectations of the direction of improvement, so that you can choose the most suitable for their own equipment.
  • Comprehensive assessment of equipment characteristics: from the printing accuracy, print size, device stability, software support and other aspects of the equipment to carry out a comprehensive assessment to ensure that the performance of the equipment can meet the production requirements.
  • Consideration of cost and return on investment: not only should we focus on the purchase cost of the equipment, but we should also give full consideration to factors such as operating costs, cost savings and increased revenues, and calculate the return on investment cycle to ensure the feasibility of the investment.
  • Emphasis on brand reputation and after-sales service: choose manufacturers with good brand reputation, rich production experience and strong technical research and development strength, and at the same time to ensure that manufacturers can provide perfect after-sales service and technical support.

Encourage informed decision-making

• Traditional foundry in the face of equipment renewal and technological upgrading, to be brave enough to try new technologies, new equipment. Sand 3D printer as an innovative technology, can bring great changes and enhancement for the foundry. However, when making a purchase decision, we should consider all aspects of the factors, conduct sufficient market research and analysis, and manufacturers to carry out in-depth communication and exchange.

It is hoped that managers of traditional foundries can make wise purchasing decisions based on this buying guide, taking into account the actual situation of their own factories, introducing sand 3D printers suitable for them, enhancing the competitiveness of their factories, realizing sustainable development, winning the first opportunity in the wave of digital transformation, and injecting new vitality into the development of the foundry industry.

Leave a message online to get a quote for sand 3D printer

砂型3D打印機購買指南最先出現在三帝科技股份有限公司。

August 10, by the 27 provinces (cities, autonomous regions) 4 cities Foundry Society and the Hong Kong Foundry Industry Association hosted the 23rd National 27 provinces (cities, autonomous regions) 4 cities and 1 region casting academic conference was held in Guiyang. The meeting focused on the theme of "aerospace - casting strong country", from the national school / association of experts, leaders and entrepreneurs on behalf of more than 200 people gathered together to talk about the development of the industry. Beijing SANDI Technology Co., Ltd. participated in the co-organization of the conference.In the forum of the conference on the morning of the 10th, Dr. Zong Guisheng, Chairman of the Board of Directors of Beijing SANDI Technology Co., Ltd. made a keynote report titled "3D Printing Empowers Casting". Dr. Zong Guisheng proposed that the core mark of advanced manufacturing technology is low cost, high efficiency and quality. Compared with the traditional casting process, 3D printing technology in the field of high-end complex structural casting with efficiency, cost and quality advantages. In the report, Dr. Zong Guisheng through the demonstration of the use of three emperor technology SLS coated sand core and 3DP resin sand shell combined with 3D printing composite process, the manufacture of aero-engine key components of the casting of the combination of sand molds, to achieve the large size of the thin-walled, complex and fine piping and other complex structural components of the 3D casting applications, as well as the use of three emperor technology 3DP sand combined with low-pressure precision casting technology and advanced Solidification control process, to achieve large-size thin-walled structure and complex runners of an underwater vehicle power unit key parts of the 3D casting applications, in-depth description of the 3D printing technology in sand casting applications in cost, quality, environmental protection, intelligence and other advantages.On the evening of 10th, "3D Empowerment" SANDI Technology Night Reception hosted by Beijing SANDI Technology Co., Ltd. was held in Guiyang Qunsheng Haosheng Hotel.Photo: Zhao Jin, Dean of the School of Mechanical Engineering, Guizhou University, gave a speech for the dinner partyPhoto: Dr. Zong Guisheng, Chairman of Beijing SANDI Technology Co.Figure: Yan Qun, General Manager of Guangxi Zhongyue Gravity Casting Co.Photo: Dr. Zong Guisheng and President Zhao Jin presenting prizes to the winners of the on-site raffleSANDI Technology independent research and development launched 4 meters + level of super-large size 3DP sand printer has become the dinner scene of the newest net red, the current amount of potential purchase intention of 40 million yuan. The equipment breaks through the traditional processing size limitations, the maximum molding 4 meters of sand, and creative use of the sand box without flexible regional molding technology, breaking the phenomenon of the larger the size of the equipment molding, the more expensive the equipment price, 4 meters of the equipment is only the price of the 2 meters + level of equipment, with lower unit costs and shorter delivery time, cost-effective realization of the oversized sand manufacturing, and can be customized to expand the printing platform to meet the 10 meters + level, and can be used to meet the user's needs on-demand! Customized extension of the printing platform to meet the production needs of the 10 m + level (6 m / 8 m / 10 m equipment has been in the synchronization of accepting reservations). At the same time, the company provides open source material process, can be adjusted for the user on demand; supporting high-performance resin binder, curing agent, cleaning agent, to ensure the molding quality and stability.Picture: 3D Printing Technology's "One Million Promotions Scheduled for Reduction" photo card activity, attracting many guests to participate [About 3D Printing Technology] Beijing 3D Printing Technology, Inc. is a 3D printing equipment and additive manufacturing service provider, national high-tech enterprises, specialized and special new enterprises, the Ministry of Industry and Information Technology, additive manufacturing typical application scenarios supplier. Ltd. is a 3D printing equipment and additive manufacturing service provider, a national high-tech enterprise, a specialized, refined, special and new enterprise, and a typical application scenario supplier of additive manufacturing of the Ministry of Industry and Information Technology. At the same time has a laser and binder jet 3D printing equipment and materials technology and application process, business covers 3D printing equipment, raw materials development and production, metal parts rapid manufacturing services, 3D printing process technology support services, etc., to establish a complete 3D printing additive manufacturing industry chain, widely used in aerospace, ships, pumps and valves, automotive, energy and power, industrial machinery, rail transportation, 3C electronics, education and scientific research, sculpture and cultural creation, rehabilitation and medical industries.

三帝科技3D打印設備意向訂單超4000萬，助力第23屆鑄造學術會議舉辦最先出現在三帝科技股份有限公司。

The 22nd China International Foundry Expo will be held on July 4, 2024 in Shanghai - National Convention and Exhibition Center (No. 333, Songze Avenue, Qingpu District, Shanghai), Beijing SANDY Technology Co. In order to return the support of the majority of users, our company proudly launched the "million subsidies, booking discount" new promotional activities! During the exhibition period, the booking of oversized casting sand printer 3DPTEK-J4000 and above size models, 100,000 off, limited to 10, welcome inquiries and orders!

The final interpretation of the rules of this promotion belongs to Beijing SANDI Technology Co.

Ultra-large size 3D casting sand printer 3DPTEK-J4000

SANDI Technology's self-developed oversized 3DP sand printer 3DPTEK-J4000 breaks through the traditional processing size limitations, the maximum molding 4 meters of sand. The device creatively adopted the sandbox-free flexible area molding technology, breaking the phenomenon that the larger the size of the equipment molding, the more expensive the equipment. With lower unit cost and shorter delivery time, cost-effective realization of oversized sand manufacturing, and can be customized according to user needs to expand the printing platform to meet the production needs of the 10 m + level (6 m/8 m/10 m equipment has been in the synchronization of accepting reservations).

In order to meet the diversified market demands, SANDY Technology has self-developed and launched full-size 3DP casting sand printers, SLS casting sand/wax printers and PMMA wax printers, which help users maximize their productivity with lower cost per unit and shorter delivery time.Introduction of English version of sand 3D printer

Figure: 3DP Casting Sand Printer

Figure: SLS Casting Sand/Wax Printer

Additive manufacturing services (3D casting)

With nearly 30 years of experience in 3D printing service and casting, based on the integrated technology process of "process design, 3D printing, casting, machining and testing", SANDI can provide high-quality R&D trial production, small-lot, multi-species, complex structure of metal products rapid manufacturing services. Through self-developed 3DP inkjet sand molding, SLS selective laser sintering, PMMA and other 3D printing equipment, the company has formed a full set of process solutions, such as 3DP sand casting, SLS sand casting, SLS wax mold fine casting, PMMA fine casting and so on. We can provide users with rapid manufacturing services for aluminum alloy, copper alloy, cast iron, cast steel, magnesium alloy, high-temperature alloy, titanium alloy and so on.

"SLS+3DP" sand composite process

The company's unique "SLS coated sand molding process + 3DP resin sand molding process" combination of sand mold manufacturing, complex structural components (large, thin-walled, small pipelines, etc.) can be realized in high-precision, high-strength integrated casting molding, the process has been selected by the Ministry of Industry and Information Technology of the typical application of additive manufacturing scenarios.

3DP sand casting process

No need to open the mold, can realize the large, thin-walled, fine pipeline, complex structure parts of the high-precision and high-strength integrated casting molding. Short production cycle, small batch production advantage is obvious, design flexibility, can be modified in time, reduce production costs. Improve the production environment, reduce labor intensity, save labor costs, greener, smarter.

SLS wax casting process

No need to open the mold, can realize the complex structure, thin-walled, large size products of high precision and high strength integrated precision casting molding. Short production cycle, small batch production advantage is obvious.

PMMA wax mold casting process

Significantly shorten the processing cycle, reduce production costs, no need to open the mold and add support, no warping and deformation in the molding process, reduce the post-treatment steps, and high molding accuracy. The company's self-developed materials with strong disappearance and low ash content can reduce casting defects and improve the yield rate, which has been successfully applied in the casting industry.

Contact: Manager Han

Contact: 13811566237

Website:www.paiguchaoren.cn

Address: Building 2, No.7 House, Jin Yi Street, Shunyi District, Beijing, China

百萬補貼 預訂立減丨三帝科技3D鑄造解決方案將登陸中國國際鑄造展最先出現在三帝科技股份有限公司。
